100 watt solar panel 100W 12V Mono for Off Grid RV Boat Home Battery Charge New
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Current Output | 10 A or Less |
| System Configuration | Off-Grid |
| Solar Technology | Monocrystalline |
| Short-Circuit Current (Isc) | 6.19A |
| Size | 31.7 x 27.48 |
| Wattage | 100 |
| MPN | LCS-100P |
| Item Length | 31.7 |
| Maximum Power | 100 Watts |
| Unit Type | Unit |
| Voltage | 12 V |
| Connector Type | MC4 |
| Open-Circuit Voltage (Voc) | 23.72 |
| Features | All Daylight Conditions |
| Optimum Operating Voltage | 20.14 |
| Protection Properties | Discharge Protection |
| Cell Quantity | 31-40 |
| Pliability | Rigid |
| Optimum Operating Current | 5.23A |
| Current Rating | 5.51-6 A |
| Maximum System Voltage | 600V DC |
| Cell Type | Mono |
| Brand | LightCatcher Solar |
| Type | Solar Panel |
| Model | 100W Solar Panel |
| Country/Region Of Manufacture | Germany |
| Application | Agriculture/Farming |
| Power | 101-150 W |
| Product Line | LightCatcher-Solar |

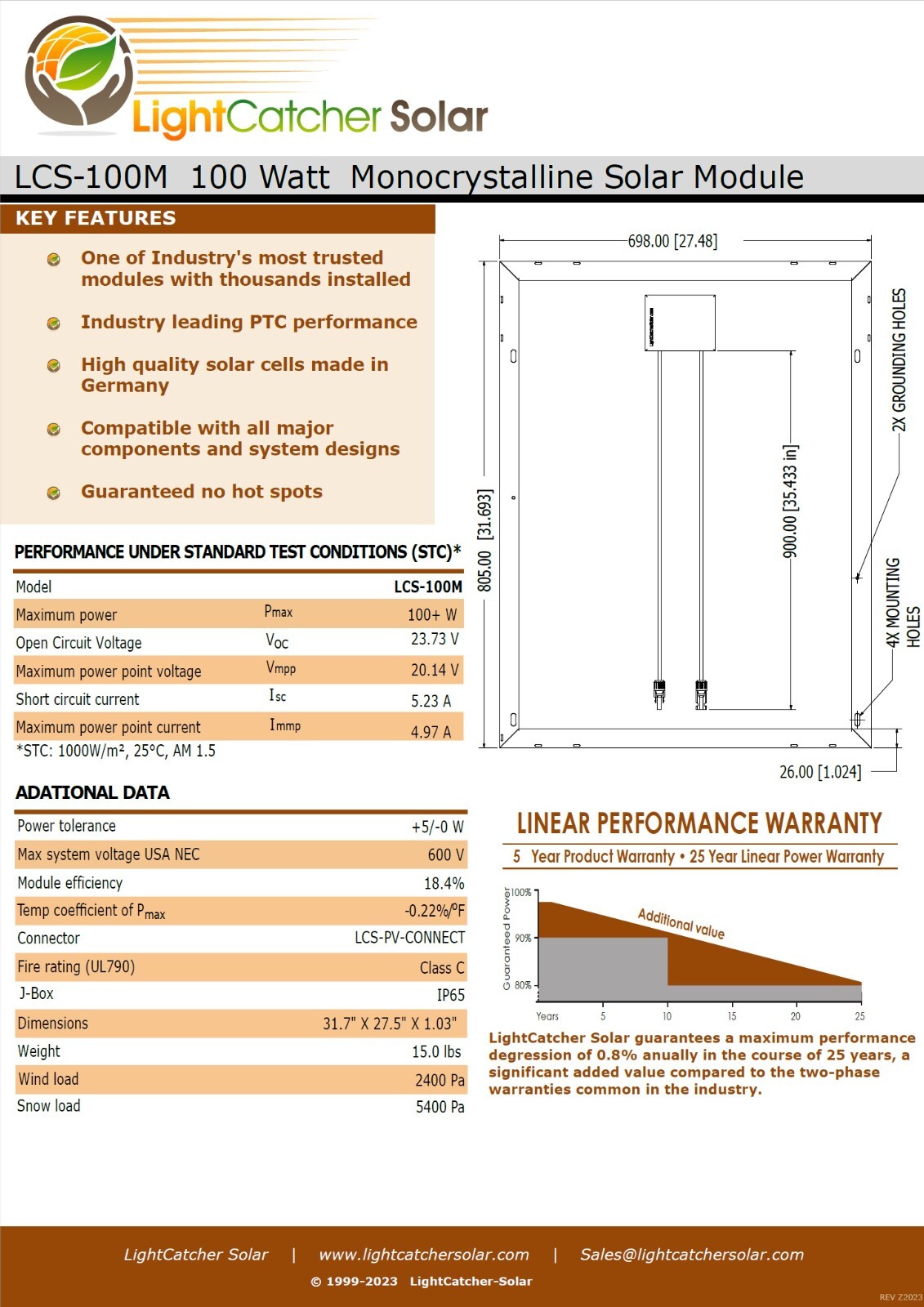

100 Watt 100W Solar Panel Kit with Solar charge Controller 12V RV Boat Off Grid STORE DESIGN & LEARN OUR QUALITY OUR POLICY ABOUT US LightCatcher-Solar 100 Watt SOLAR PANEL Get the best from off-grid applications with our LightCatcher Solar 100 Watt panel. Crafted with premium German cells, our solar panels are tailored for peak performance in off-grid systems and 12V battery charging. Need more power? Easily link 2 or 4 panels for optimal charging of 24V or 48V batteries. For high power systems, connect multiple strings in parallel. Our modules are compatible with both MPPT and PWM charge controllers. Choose LightCatcher for solar power made simple and efficient. KEY FEATURES Grade A Solar Panel German Made Grade A cells Produce 10% More power than Similar Panels on the market No Hot-Spot Heating Guaranteed, High Quality Diodes Installed 25 Year Warranty Short Circuit/Reverse Connection Safety Features Expandable up to 800 Watts 38" connectorized wire for easy install Solar Panel Specs Model Number LCS-100M Maximum Power (PMAX): 100+ Watts Open CIrcuit Voltage (VOC): 23.73 V Max power point voltage (VMPP): 20.14 Short circuit current (ISC): 5.23 A Max power point current (IMPP): 5.0 A Dimensions 31.69x 27.48 inches Warranty: 25 Year Power Output Warranty PERFORMANCE UNDER STANDARD TEST CONDITIONS (STC) Controller Specs Model Number LCS-30PP Maximum Input Power at 24V: 800 Watts Maximum Input Power at 12V: 400 Watts Rated Charge Current: 30 A Rated Load Current: 30 A Self-consumption: 5 mA Max. Solar Input Voltage: 42 V Overload Protection: Yes --###########################What is included Table######################################- ITEMS INCLUDED IN THIS KIT 30A PWM Charge Controller The LCS PULSE365 (Upgraded and redesigned per customer request) PWM charge controller is easy to setup and simple to use. With over 13,000 units sold and installed, it is a proven design that is guaranteed to be relaible. 100 Watt Polycrystalline Solar Panel LightCatcher Solar 100 Watt solar panel utilizing quality German made cells. Not all off-grid modules are created equal. We have designed and manufactured our modules for optimal performance in off-grid applications. Since 12 V batteries are commonly used in off-grid systems, LightCatcherSolar panels are optimized for charging these batteries. --> Why Choose Us? Anytime Return Policy Return at anytime No questions asked Get a full refund on product No restocking fees Fast And free shipping Free shipping to lower 48 states Most orders shipped within 1 business day Multiple warehouse locations for fast delivery 99% of our items are delivered prior to their estimated delivery date Quality packaging, fully insured against DOA
